Introduction

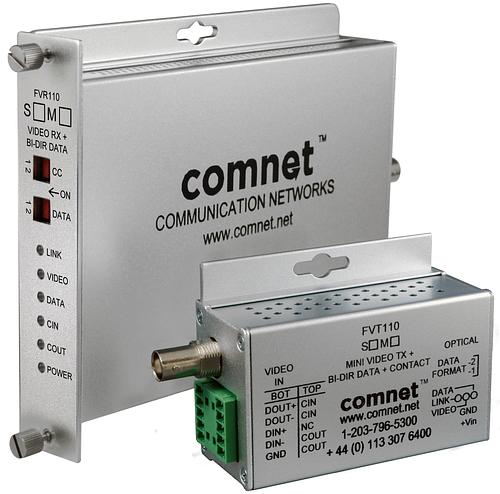

The ComNetT FVR110 series is a video transmitter/receiver and data transceiver that supports the simultaneous transmission of short haul quality 10-bit EIA RS-250C digitally encoded video and bi-directional data over one multimode or single mode optical fiber. The module is universally compatible with major CCTV camera manufacturers and supports RS232, RS422 and 2 or 4-wire RS485 data interfaces and most data protocols. It also supports "up-the-coax" data transmission from all major manufacturers, utilizing time-base correction these units can achieve distances of 48km. The FVR110 supports Panasonic ProteusT, Pelco CoaxitronT and Bosch BilinxT Up-the-Coax systems. The FVT110 also transmits a single bi-directional contact closure signal. Packaged in the exclusive ComNet ComFit housing, the full-size units may be either wall or rack-mounted, or may be DIN-rail mounted by the addition of ComNet model DINBKT1 adaptor plate.
Features
- 10-bit digital video transmission
- One bi-directional data channel
- One 10/100 BASE-T/TX fast Ethernet port
- IEEE 802.3 compliant
- Automatic MDI/MDI-X crossover
- Exceeds all requirements for RS-250C short-haul transmission: True broadcast video performance
- Compatible with all NTSC, PAL, or SECAM CCTV camera systems
- Certified to the requirements of NEMA TS-1/TS-2 and the Caltrans Specification for Traffic Signal Control Equipment
- Voltage transient protection on all power and signal input/output lines provides unconditional protection from power surges and other voltage transient events
- Automatic resettable fuses on all power lines
- Distances up to 30 miles (48 km)
- Bi-color (Red/Green) LED status indicators provide rapid indication of critical operating parameters
- Hot-swappable rack module
- Interchangeable between standalone or rack mount use – ComFit
