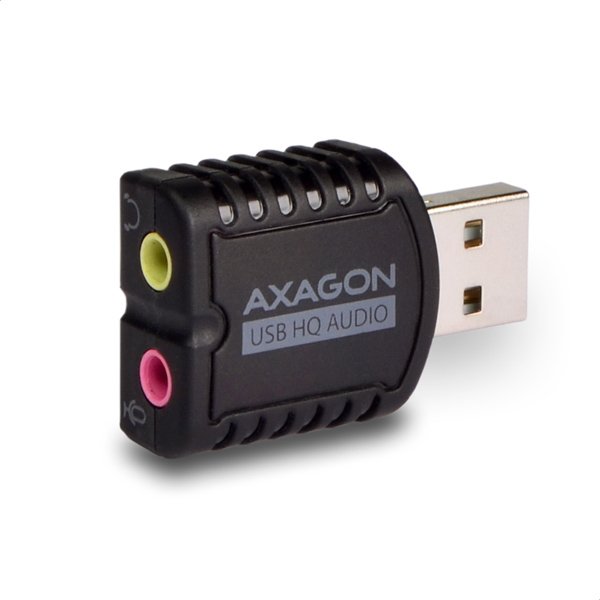

Axagon ADA-17 audio card 2.0 channels USB
Introduction
The AXAGON ADA-17 USB HQ audio MINI adapter easily and quickly adds an external USB sound card to your computer. The installation can be handled even by a layman - only plug the adapter into the USB port of the computer and the rest is done automatically. The miniature sound card is suitable for both desktop and laptop computers and allows stereo headphones, microphones or headsets to be connected for Skype service, for example. It also serves well as a replacement for the broken original sound card in your laptop.
Specifications
| Audio | |
|---|---|
| Line-out Signal-to-Noise Ratio (SNR) | 93 dB |
| Line-in Signal-to-Noise Ratio (SNR) | 90 dB |
| Audio A/D Converter (ADC) | 16-bit/48kHz |
| Digital-to-Analog Conversion (DAC) | 24-bit/48kHz |
| Internal | No |
| Audio quality | 16 bit |
| Ports & interfaces | |
| Headphone connectivity | 3.5 mm |
| Host interface | USB |
| Headphone outputs | 1 |
| Microphone in | Yes |
| Plug and Play | Yes |
| Features | |
| Product colour | Black |
| LED indicators | Yes |
| Chipset | C-Media CM6533 |
| Certification | CE, FCC, RoHS |
| Software | |
| Mac compatibility | Yes |
| Windows operating systems supported | Windows 10,Windows 7,Windows 8,Windows 8.1,Windows Vista,Windows XP |
| Mac operating systems supported | Mac OS X 10.10 Yosemite,Mac OS X 10.11 El Capitan,Mac OS X 10.12 Sierra,Mac OS X 10.13 High Sierra,Mac OS X 10.14 Mojave,Mac OS X 10.4 Tiger,Mac OS X 10.5 Leopard,Mac OS X 10.6 Snow Leopard,Mac OS X 10.7 Lion,Mac OS X 10.8 Mountain Lion,Mac OS X 10.9 Mavericks |
| Server operating systems supported | Windows Server 2003,Windows Server 2008,Windows Server 2012,Windows Server 2016 |
| System requirements | |
| USB required | Yes |
| Technical details | |
| Headphone connectivity | 3.5 mm |
| Product colour | Black |
| LED indicators | Yes |
| Chipset | C-Media CM6533 |
| Weight & dimensions | |
| Weight | 8 g |
| Width | 39 mm |
| Depth | 24 mm |
| Height | 12 mm |
