32bit 100Mbps Fast Enet Adaptr AT-2701FXA/ST-001
Introduction

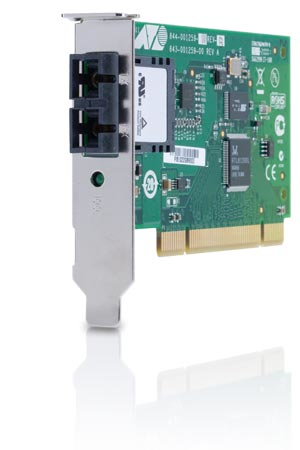

The Allied Telesis AT-2701FXa 100Mbps Fiber Network Interface Card provides secure communications for desktop PCs and Thin Clients. It is an ideal solution for networks requiring protection from electrical interference and hackers as AT-2701FXa is resistant to signal degradation, snooping and interference.
Specifications
| Ports & interfaces | |
|---|---|
| Internal | Yes |
| Fiber optic connector | ST |
| Interface | Ethernet |
| Host interface | PCI |
| Connectivity technology | Wired |
| Bandwidth | |
| Maximum data transfer rate | 100 Mbit/s |
| Technical details | |
| Wake-on-LAN ready | Yes |
| Receiver sensitivity | -31 dBm |
| Compliance certificates | RoHS |
| Network | |
| Ethernet LAN | Yes |
| Networking standards | IEEE 802.1Q, IEEE 802.2, IEEE 802.3ac, IEEE 802.3u |
| Wake-on-LAN ready | Yes |
| Fiber ethernet cabling technology | 100BASE-FX |
| Ethernet LAN data rates | 100 Mbit/s |
| Maximum data transfer rate | 100 Mbit/s |
| Receiver sensitivity | -31 dBm |
| Design | |
| Internal | Yes |
| LED indicators | Yes |
| Receiver sensitivity | -31 dBm |
| Component for | PC |
| Power | |
| Power consumption (typical) | 2.5 W |
| Indication | |
| Link/Act LED | Yes |
| LED indicators | Yes |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -25 - 70 °C |
| Operating relative humidity (H-H) | 5 - 90% |
| Weight & dimensions | |
| Width | 125 mm |
| Depth | 64 mm |
| Performance | |
| Wake-on-LAN ready | Yes |
| Receiver sensitivity | -31 dBm |
| Other features | |
| Receiver sensitivity | -31 dBm |
| Link/Act LED | Yes |
