U.S. ROBOTICS USR5639 U.S. ROBOTICS USRobotics 56K USB SOFTMODEM

*Image accuracy is not guaranteed
Please do not rely on the image for your purchase.

** All heavy items above 25KG will be charged shipping cost as per actual.
Please contact us for a shipping quote before placing order.

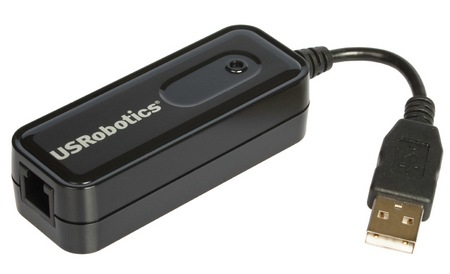

USRobotics 56K USB SOFTMODEM

Introduction

The USRobotics 56K USB Softmodem delivers the performance and reliability USRobotics is known for in a compact, cost effective form factor. Broadly compatible with Windows including 64 bit and server systems, the modem uses the CPU of the host computer for high compression throughput due to direct parallel access. Features include ring detection and qualification - eliminating unintended wake-on-ring events due to activity on the phone line other than ringing, as well as handling pulse dial control to eliminate system timing dependencies common with soft modems. The USRobotics USB Softmodem is fully compatible with V.92 and lower rates, making it ideal for compact POS solutions that only require V.34.

Features

USB convenience and ease of use

  • Simple USB Plug and Play installation
  • Hot-swappable (installs/uninstalls automatically)
  • Bus-powered so it doesn't require an external power supply

Advanced features and functionality

  • Send and receive faxes through your computer while running other applications
  • Permanently store preferred modem default settings
  • Caller ID support

Get the speed you need

  • Quick Connect (V.92) reduces the time it takes to establish your dial-up Internet connection
  • V.92 lets you send attachments up to 50% faster

Simple installation

  • Plug and play installation means the USRobotics modem is ready to use in seconds

Excellent Compatibility

  • Compatible with Windows XP/XP 64 bit/2003/2003 64 bit/Vista/Vista 64 bit/Server 2008/Server 2008 64 bit/Win 7/Win 7 64 bit/Win 8/Win 8 64 bit/Server 2011/Server 2012
  • Compatible with Windows Embedded POSReady 2009
  • Common driver across multiple Operating Systems

Global Approvals

  • US, Canada, and European regulatory approvals
  • Qualified for additional worldwide regulatory approvals, license fee for full approval

Specifications

General

  • Data: V.92, V.90, V.34, V.32bis, V.32
  • Data Error Control/Compression: V.44/V.42/V42bis and MNP5
  • Fax: T.31 (Class 1) with V.17, V.29, V.27ter, V.21
  • DTE interface: USB Version 2.0
  • USB powered
  • Caller ID support (requires service from your local phone company; Caller ID may not be supported in some countries)+
  • Hayes Compatible

Physical

  • 1 Power LED
  • Phone line interface: One RJ-11 socket

Environmental

  • Temperature:
  • Operating Temperature conditions: 0 to 50 degrees C
  • Non-Operating Temperature conditions: -20 to 70 degrees C
  • Humidity:
  • Operating Humidity conditions: 20% to 80% non-condensing
  • Non-Operating Humidity conditions: 5% to 95% non-condensing

Power Consumption

  • Port Close (idle) - 75mA, 0.375W
  • Port Open (active) - 130 mA, 0.65W
  • Suspend - 2.5mA, 0.012

Regulatory

  • FCC approved
  • IC approved
  • UL/CUL listed
  • CE approved

Package Dimensions/Weight

  • 6.75 x 5.38 x 1.18 in (17.15 x 13.60 x 3.0 cm)
  • .30 lb (.136 kg)

Product Dimensions

  • 3.1 x 1.18 x .84 in (7.8 x 3.0 x 2.1 cm)
  • .10 lb (.045 kg)

Minimum System Requirements

  • Windows Server 2012/Server 2011/ Win 7/ Win 8/ Server 2008/ VistaTM / Server 2003/POSReady/XP - 32 and 64 bit operating systems (Unimodem TSP/TAPI compliant)
  • Available USB port
  • Analog phone line

Package Contents

  • USRobotics 56K USB Softmodem
  • Phone cord
