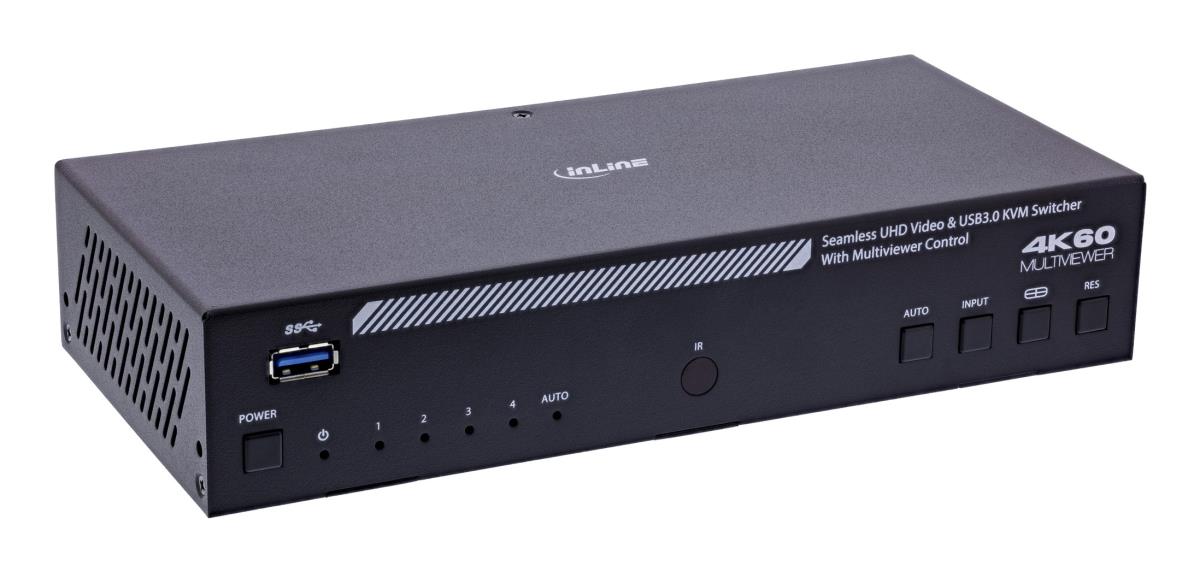

EU Product - - KVM Switch, 4-fach, HDMI, 4K60Hz, Multiviewer, USB Hub, schwarz

Introduction

Control four HDMI sources simultaneously:Display up to four PCs or devices simultaneously on one screen with a split multiview layout.
Flexible multiview modes for a perfect overview:Choose between PIP, PBP, Triple or Quad – ideal for IT, control rooms or presentations.
Seamless switching without interruption:Control via button, hotkey, IR, OSD or software – quick changes without reconnecting cables.
USB KVM for shared peripheral use:Use one keyboard, mouse and USB devices for all four systems simultaneously – saves space and costs.
Brilliant 4K@60Hz image quality:Supports HDR, various audio formats and offers razor-sharp UHD display for demanding applications.

With the InLine KVM Switch, 4-way, HDMI, Multiviewer function, you can control and monitor up to four HDMI sources simultaneously on a single UHD display. The integrated multiview modes such as PIP, PBP, Triple or Quad offer maximum flexibility for every requirement – whether in control rooms, during presentations or in your home office.
Thanks to the built-in USB KVM hub, all four systems share a keyboard, mouse and USB devices, allowing you to work efficiently and save space. Switching between sources is seamless and uninterrupted – either via button, hotkey, IR remote control, OSD menu or software. It supports resolutions up to 4K@60Hz (4:4:4), various HDR formats and extensive audio options via HDMI, SPDIF and stereo output. With its robust metal housing and simple plug & play installation, this KVM switch is the perfect solution for versatile and demanding applications.
Optimised image performance depending on mode:
Each of the four HDMI inputs supports up to 3840×2160@60Hz (HDMI 2.0b, 4:4:4) – both individually and in multiview mode:

Single-view mode:Reproduces a single 4K60Hz signal in full native quality if the source supports this. If only a 1080p signal is available, it is upscaled to 4K (with the output set accordingly).
Multiview mode:Combines up to four 1080p sources into a razor-sharp 4K output image (4× 1920×1080 = 3840×2160). Here too, scaling is performed for optimal display.

Technical data

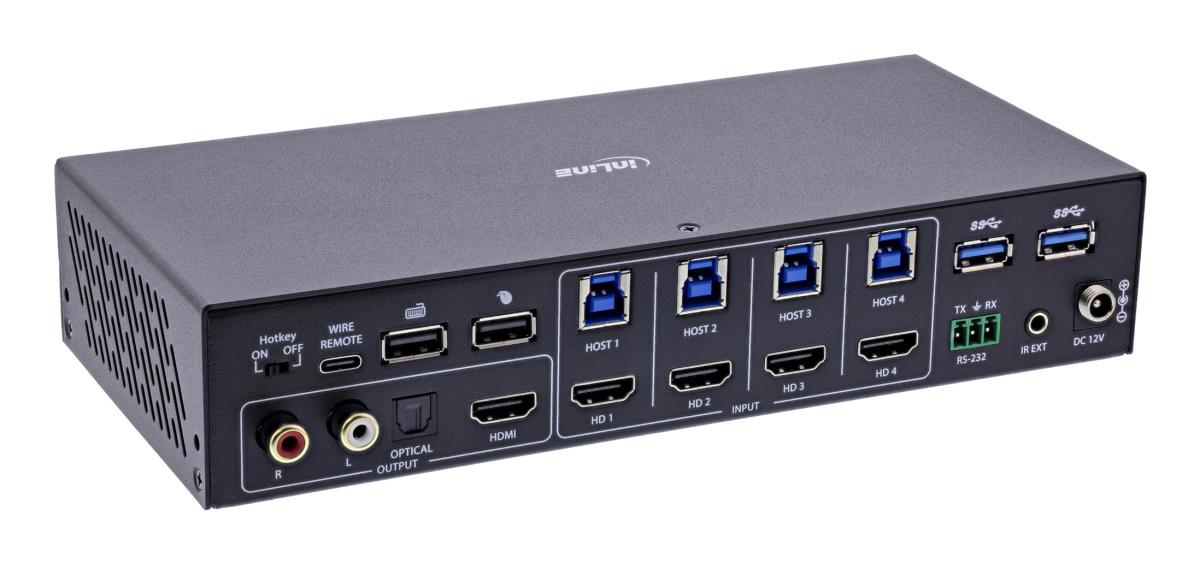

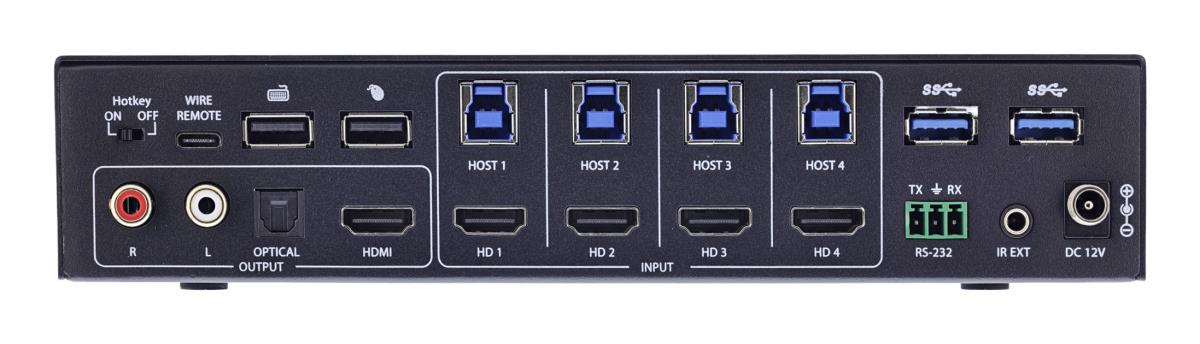

Inputs:
– 4 × HDMI (Type A, 19-pin)
– 4 × USB 3.2 Gen.1 Host (USB-B)
Outputs:
– 1 × HDMI OUT (Type A)
– 1 × 3.5 mm stereo jack (L/R, PCM2.0)
– 1 × S/PDIF (optical)
Other connections:
– 2 × USB 2.0 for mouse/keyboard
– 3 × USB 3.2 Gen.1 for USB devices
– 1 × RS-232 (3-pin terminal connection)
– 1 × IR EXT (3.5 mm stereo)
Supported resolutions:up to 3840×2160@60Hz (4:4:4), 18 Gbps
Supported audio formats:
– HDMI: PCM2.0/5.1/7.1, Dolby Digital/Plus/EX, DTS, DTS-HD, DSD
– SPDIF: Dolby Digital/Plus, DTS 5.1, PCM2.0
– 3.5 mm L/R: PCM2.0
HDMI version:2.0b
HDCP compatibility:2.2 / 1.x
Colour depth:8 / 10 / 12 bits
Colour spaces:RGB, YCbCr 4:4:4 / 4:2:2 / 4:2:0
Multiview modes:Single, PIP, PBP (1), PBP (2), Triple (1), Triple (2), Quad (1), Quad (2)
Control:Front panel, IR, hotkey, OSD, RS-232, controller software
EDID management:predefined and user-defined modes
Housing:metal, black
Dimensions:220 × 100 × 44 mm
Weight:443 g
Operating temperature:0–40 °C
Storage temperature:–20–60 °C C
Humidity:20–90% (non-condensing)
ESD protection:±8 kV air / ±4 kV contact

External power supply (power adapter)

Type:external plug-in power adapter with lock
Input voltage:100–240 V AC, 50/60 Hz
Output voltage:12.0 V DC
Output current:max. 2.5 A
Output power:25.0 W
Average operating efficiency:89.26%
Efficiency at low load (10%):85.60%
Power consumption at zero load:0.062 W

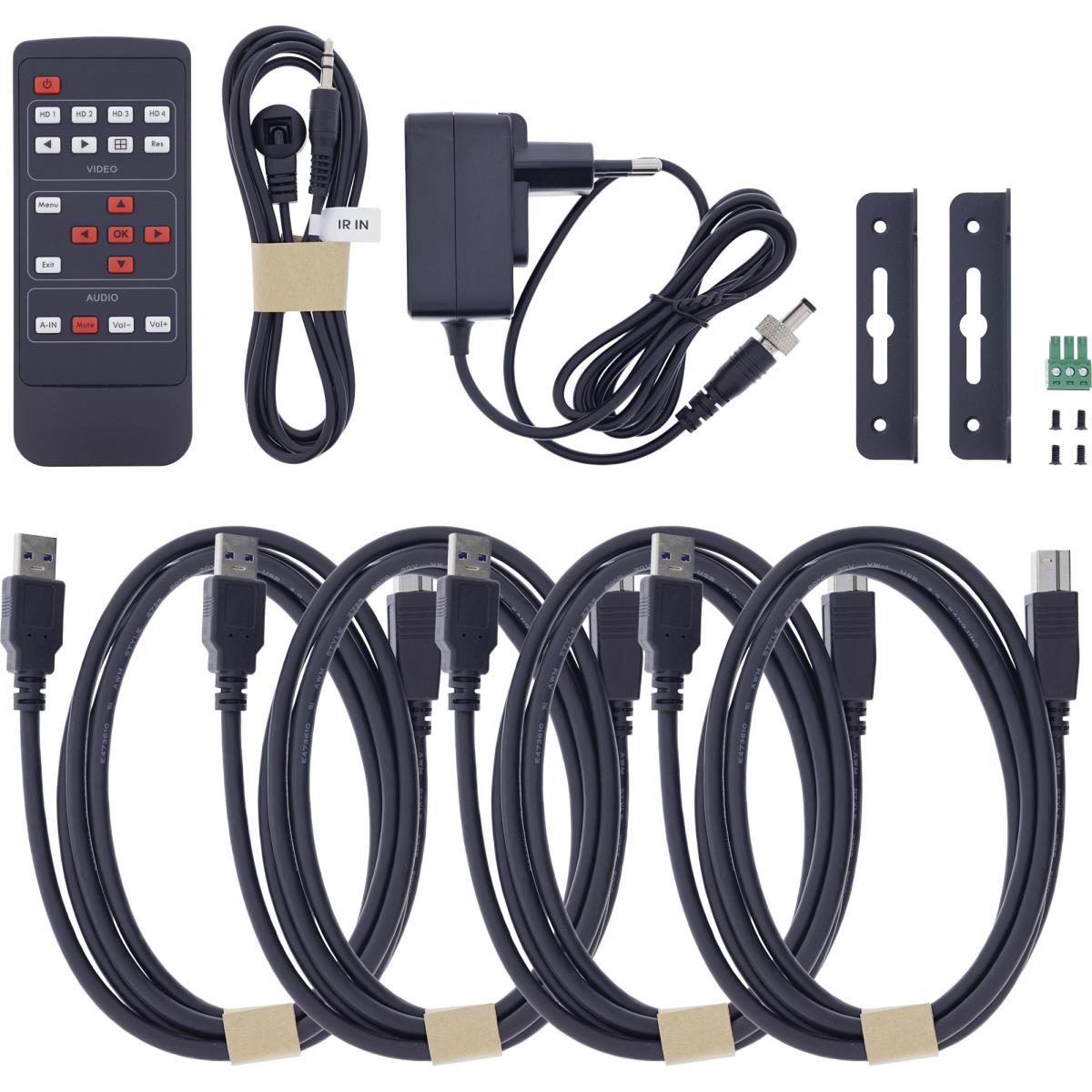

Scope of delivery

1 × InLine® KVM switch, 4-port, HDMI, 4K60Hz, with multiviewer function
1 × IR remote control
1 × IR receiver cable (38 kHz, 1.5 m)
4 × USB cables (USB 3.2 Gen.1, USB-A to USB-B, 1.8 m)
1 × 12 V/2.5 A power supply with lock
1 × 3-pin terminal connection plug
2 × mounting brackets
4 × screws (KM3×4)
1 × user manual in German/English
