Introduction

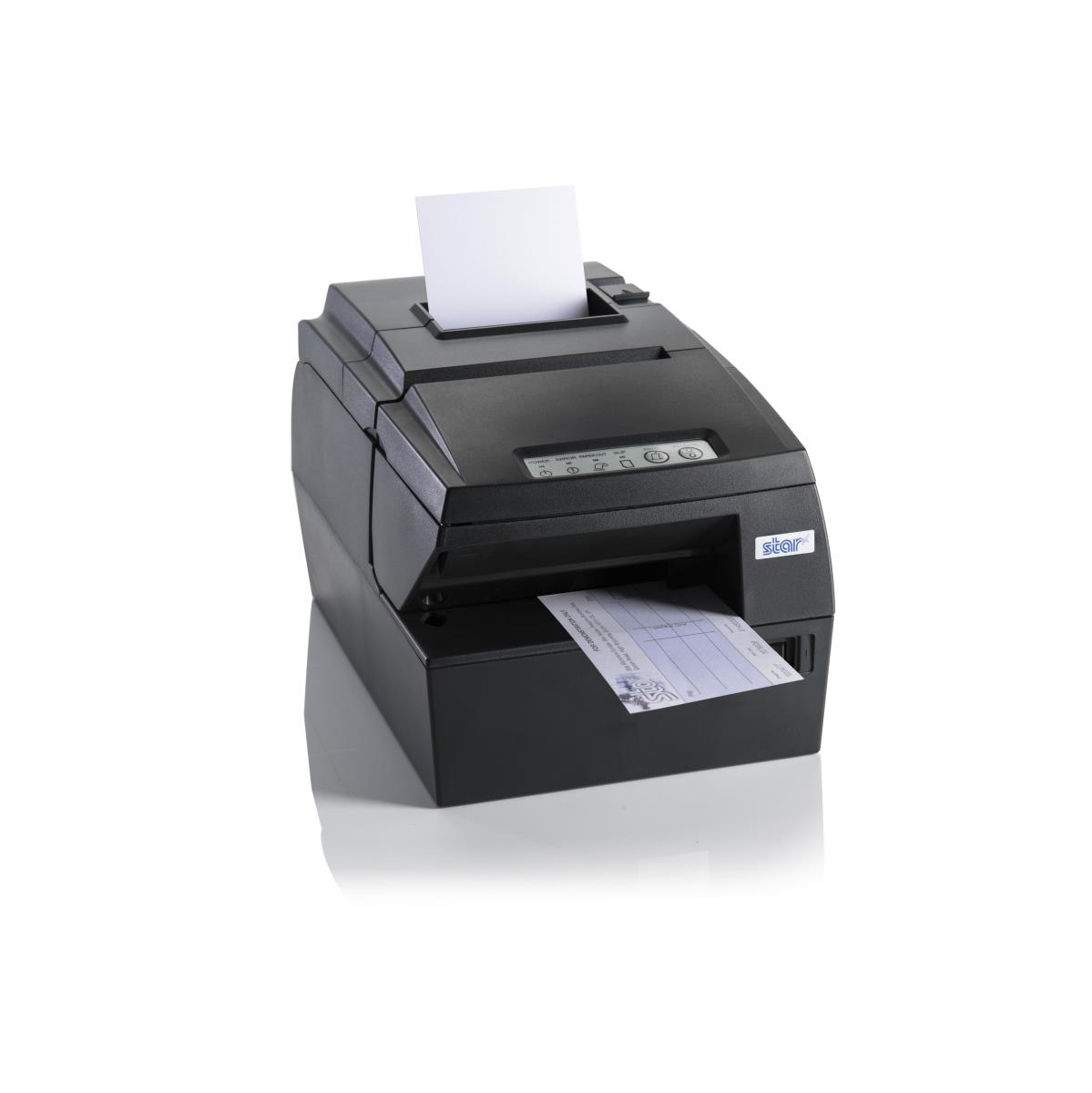

Hybrid Combination without MICR (MICR = Magnetic Ink Character Recognition, used in cheque-reading devices).High speed 250mm/second thermal receipt printer,combined with high speed 9-pin matrix cheque / validation printer.

General specifications

Printer Type

Hybrid

Model

HSP7543

Printing

Print Technology

Thermal / Matrix Hybrid

Print cartridges (Colour/Type)

Ribbon: RC-7KB

Print Quality / Speed

Resolution Black

203 dpi(thermal)

Speed Mono

up to 250mm/second (receipt)
up to 4.82 lps (40 columns);up to 8.9 lps (16 columns)-matrix slip

Print languages / Fonts / Barcode

Language

Star Mode / ESC/POST

Paper Handling / Media

Printable Area

max. 85.4mm(matrix slip station)

Dimensions / weight / warranty

Width

186 mm (7.32 inches)

Height

177 mm (6.97 inches)

Depth

296 mm (11.65 inches)

Weight

4.6Kg (10.14 lb)

Connectivity

USB

Yes

Serial

Yes

Parallel

Yes
