Introduction

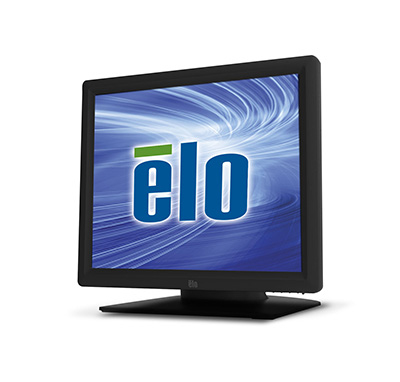

The 1517L touchmonitor is built to withstand the rigors of continuous public use with a rugged "built for touch" design. Its stylish, thin and modern look is coupled with a retail-focused feature set and is an attractive solution for commercial touchmonitor needs. It is well suited for high use public venues where point-of-sale, point-of-information, point-of-service, shelf-level and countertop interactive digital signage and loyalty systems are found.

Monitor Type

TV / Monitor

Monitor

Model Specifications

Model

1517L

Display Type

LCD

Screen Size

15"

Cabinet Colour

Black

Backlighting Technology

LED

Display

Response Time

16 ms

Viewing Angle

Horizontol : 160 degrees
Vertical : 140 degrees

Connectivity

USB

1 x USB

VGA

1 x VGA


Brightness

250 cd / m²

Aspect Ratio

4:3

Contrast Ratio

700:1

Colours

16.2 million

Maximum Resolution

1024 x 768

Multimedia

Multimedia Capability

No

Power

Power Voltage

110 - 220 V AC

Power Consumption

Operating : 12 W
Standby : 1.70 W

Dimensions

Height

317.50 mm (12.50 inches)

Width

358.14 mm (14.10 inches)

Depth

198.12 mm (7.80 inches)

Weight

4.30 kg (9.48 lb)

Ergonomics

Supported Mounting

75 x 75 mm
