EU Product - HDMI Micro - VG dper M-F
Introduction

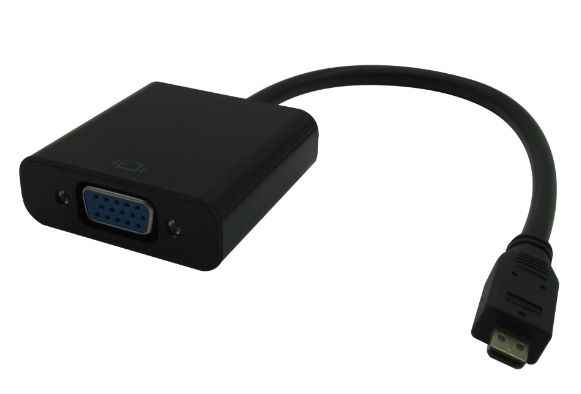

This MicroConnect Mirco HDMI to VGA adapter allows you to display content from a device with Micro HDMI output to a monitor with a VGA input. The adapter supports image transfer only!
Specifications
| Features | |
|---|---|
| Converter type | Active video converter |
| Chipset | AG6200 |
| HDMI version | 1.4 |
| Product colour | Black |
| Cable length | 0.25 m |
| Connector 1 | HDMI Type D (Micro) |
| Connector 2 | VGA (D-Sub) |
| Connector 1 gender | Male |
| Connector 2 gender | Female |
| Connector contacts plating | Gold |
| Cable material | Copper |
| Jacket material | Polyvinyl chloride (PVC) |
| AWG wire size | 32 |
| 3D | Yes |
| Maximum resolution | 1920 x 1080 pixels |
| HDCP | Yes |
| Connector 1 form factor | Straight |
| Connector 2 form factor | Straight |
| Dual Link DVI | Yes |
| HDCP version | 1.4 |
| Certificates | |
| Compliance certificates | RoHS |
| Weight & dimensions | |
| Cable diameter | 4.8 mm |
| Weight | 20 g |
| Package width | 157 mm |
| Package depth | 120 mm |
| Package height | 18 mm |
| Package weight | 36 g |
| Packaging data | |
| Package width | 157 mm |
| Package depth | 120 mm |
| Package height | 18 mm |
| Package weight | 36 g |
| Technical details | |
| Compliance certificates | RoHS |
