Pearl Mini - Streaming Switching And Recording
Introduction

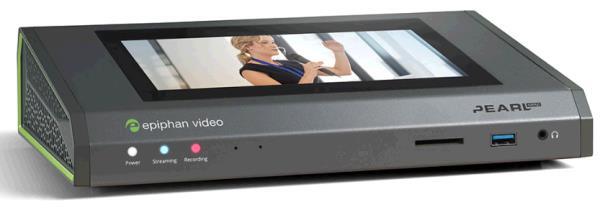

The Epiphan Pearl Mini is the entry model of the Pearl family. It is an all-in-one video recording, streaming and switching system. The Pearl Mini supports Full HD and is ideal for smaller events, where for example two cameras are used or for lectures where a camera and a laptop are used. The Pearl Mini is very user-friendly and therefore makes a presentation in an instant. Features a built-in touchscreen, local viewing option, an SD slot and the ability to connect a microphone directly. Note: The Pearl Mini needs an SD card to record video. Recommended SD card: at least 64GB (class 10) up to a maximum of 512 GB U3 SD card.
Specifications
| Codecs | H.264, Motion JPEG |
| Connections | RCA, HDMI, XLR, USB, BNC, 3.5 mm jack, RJ45 |
| Connections (off) | HDMI A (full-size) female (x1) |
| Video signal | HDMI, SDI |
| Management method | Web browser interface, On Screen Display (OSD), API |
| Recording formats | AVI, MP4, MOV or MPEG-TS |
| Connections (in) | USB A female (x2), RJ45 female (x1), 3.5 mm jack female (x1), BNC female (x1), XLR female (x2), RCA female (x2), HDMI A (full size) female ( x2) |
| Max resolution @ 30Hz | 1920 x 1200 |
| Other signals | Digital audio, USB 3.0 |
| food | External power adapter |
