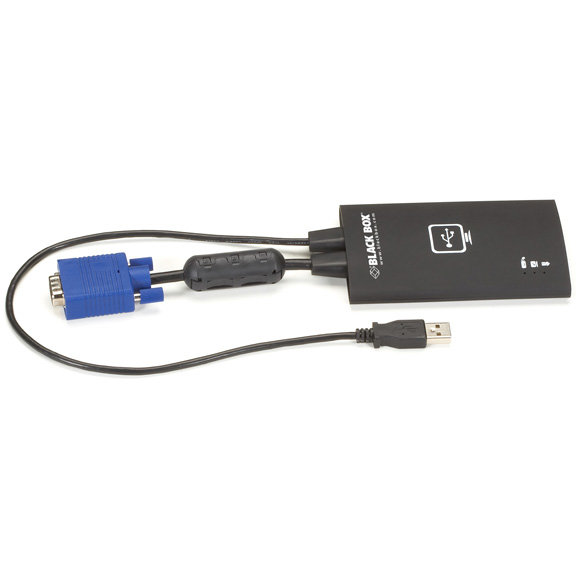

Black Box KVT100A KVM cable
Introduction
The USB Laptop Console Crash Cart Adapter plugs into any VGA + USB Server or Computer and allows the administrator to view & control the system from a separate laptop. Software running on the laptop will allow full access to the target system, which also supports full keyboard and mouse control. The adapter can be quickly plugged into a target system via the VGA and USB ports, and the laptop would then connect to the USB Laptop Console Crash Cart via a single USB connector. The software then emulates the video, keyboard, and mouse so that the administrator can gain full control of the target system.
Features
| CE Approval | Yes |
| Connectors | Inputs on integrated cable (to server): VGA: HD15 M; USB: USB Type A M; Outputs (to laptop): Mini USB Type B F (USB 2.0), with detachable USB Mini Type B male to USB Type A male cable |
| Dimensions | 0.6"H x 2.9"W x 4.5"D (1.5 x 7.4 x 11.5 cm) |
| Laptop Requirements | PC running Windows® 2000, Windows XP, or Windows Vista® or Mac® OS X 10.5 (Leopard) or higher (Intel® processor only); (1) available high-speed USB port (100-mA current); 20 Megabytes available disk space for install; 24-bit color display |
| Power | From the server or laptop USB interface with a maximum of 500 mA at 5 VDC |
| Resolutions (Maximum) | 1920 x 1200 at 60 Hz or 1600 x 1200 at 75 Hz |
| RoHS | Yes |
| Server Requirements | (1) USB port (full speed) for keyboard/mouse (500-mA current); analog VGA graphics output (analog DVI can be used with adapter); OS supporting absolute USB mouse (Windows 2000 and later, Mac OS, Linux®, etc.) |
| Weight | 0.4 lb. (0.2 kg) |
