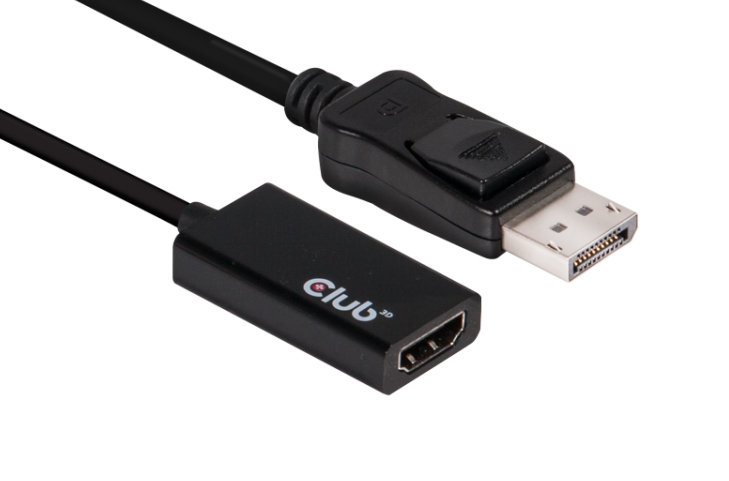

CLUB3D DisplayPort1.1 to HDMI1.4 VR Ready Passive Adapter
Introduction
Description:
The Club 3D CAC-1056 is a passive HDMIT signal converter. The DisplayPortT 1.1a to HDMIT 1.4a VR Ready Adapter is the easiest solution for connecting your DisplayPortT 1.1a enabled Game PC / Laptop / Tablet to an HDMIT 1.4 enabled (U)HD Television, monitor or Projector. The adapter is fully compliant to HDMIT 1.4a specification allowing for 3Gbps TMDS through-put per channel. The interface in the adapter has three lanes for HDMI data, clock, HPD signal and power, offering a total TMDS throughput of 9Gbps.
Supports up to Full HD Resolution at 120Hz.
The DisplayPortT 1.1a to HDMIT 1.4a VR adapter supports (U)HD resolutions of up to 4K UHD 3840 x 2160p @ 30Hz or 1920 x 1080p ~120Hz for a clear, sharp picture. Use the adapter to play games, view video or browse the internet from your DisplayPortT 1.1 enabled device in (Ultra) high- resolution. Supporting up to 8 channels of audio, the adapter provides High Definition digital audio and video. This is also an ideal solution for use with any VR Device.
Specifications
| Connector 1 | DisplayPort |
| Connector 2 | HDMI |
| Gender | Male/female |
| Connector contacts plating | Silver |
| Colour of product | Black |
| Cable length | 0.2 m |
| RoHS compliance | Yes |
| Certification | ROHS, FCC, and CE EMI requirements |
| DisplayPort version | 1.1 |
| Maximum resolution (HDMI) | 3840 x 2160 pixels |
| Converter type | Passive |
| Bandwidth | 9 Gbit/s |
| Compatible operating systems | MAC OSx, WINDOWS |
| Country of origin | China |

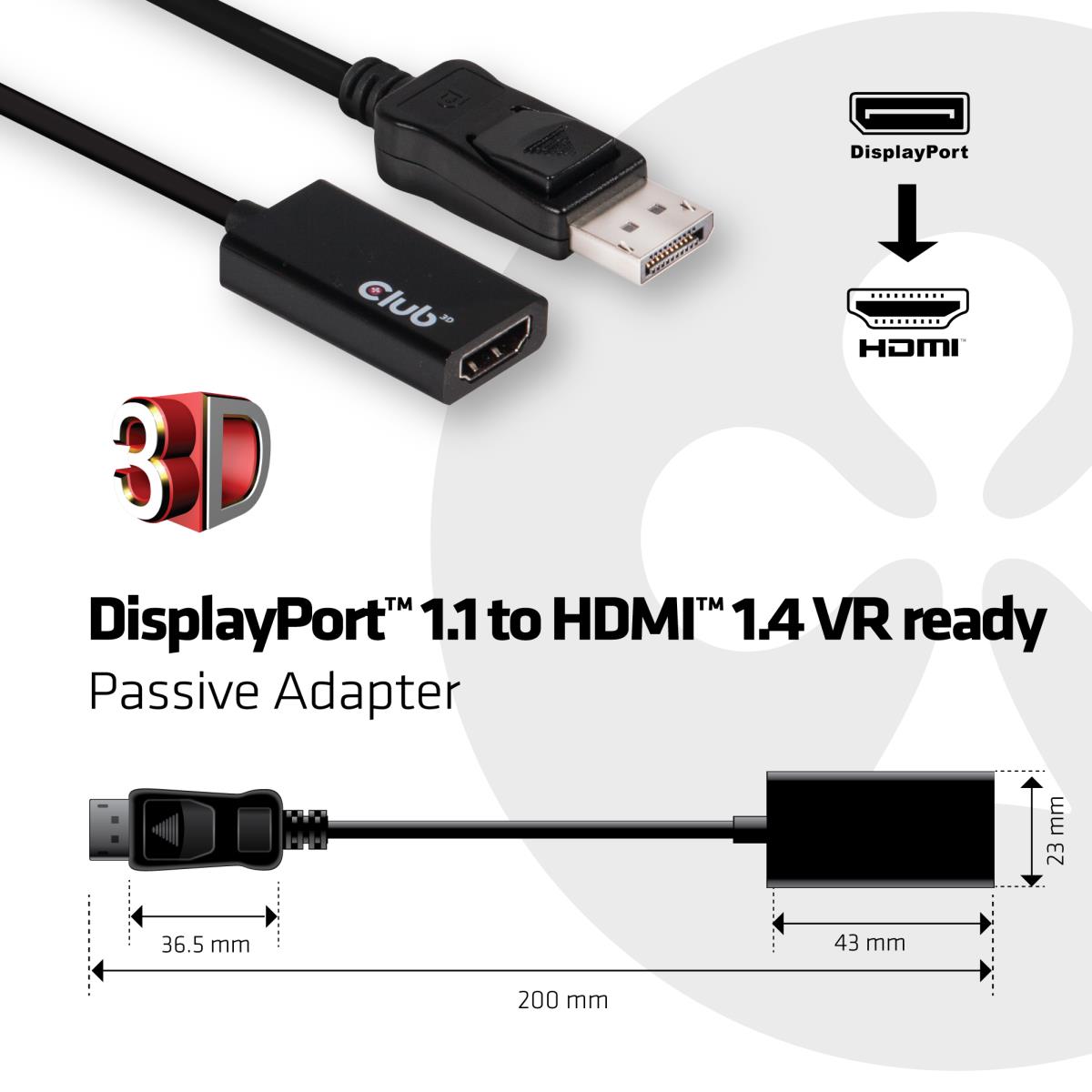

| Width | 23 mm |
| Depth | 10 mm |
| Height | 200 mm |
| Weight | 40 g |
| Package width | 60 mm |
| Package depth | 35 mm |
| Package height | 240 mm |
| Package type | Box |
