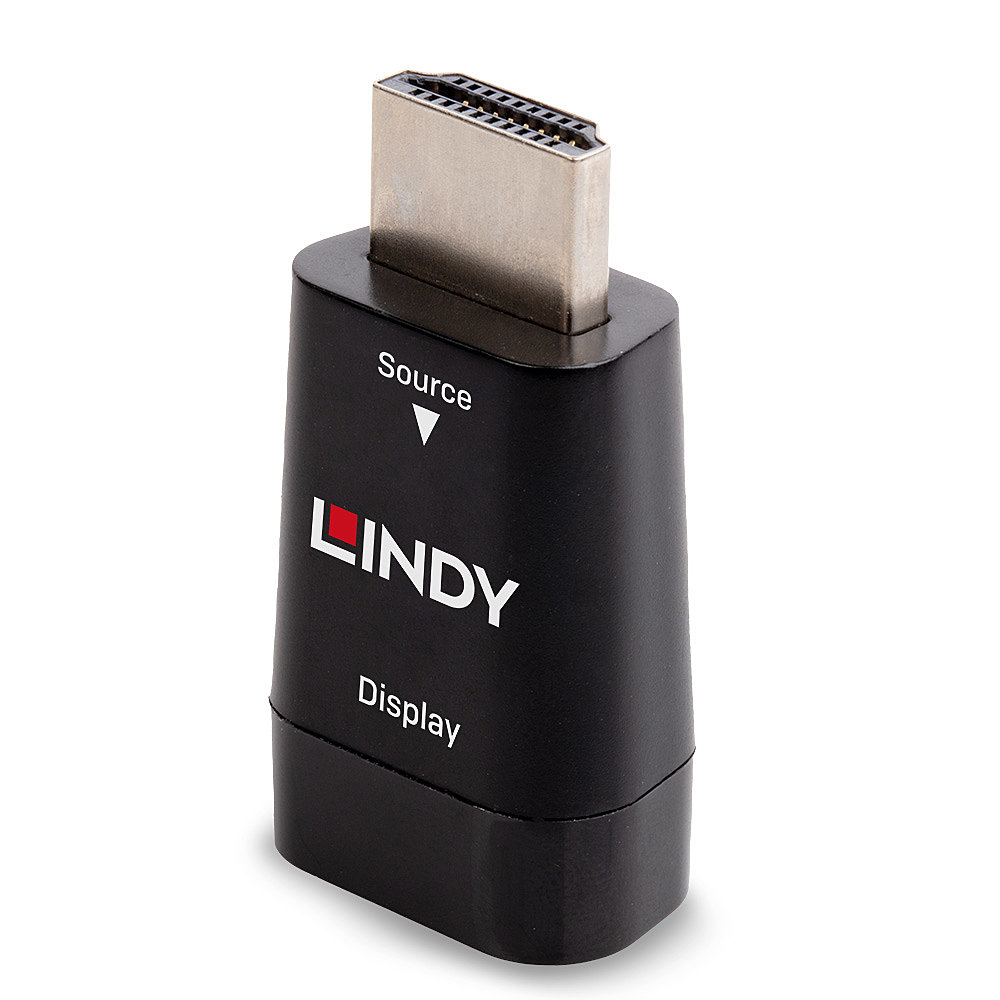

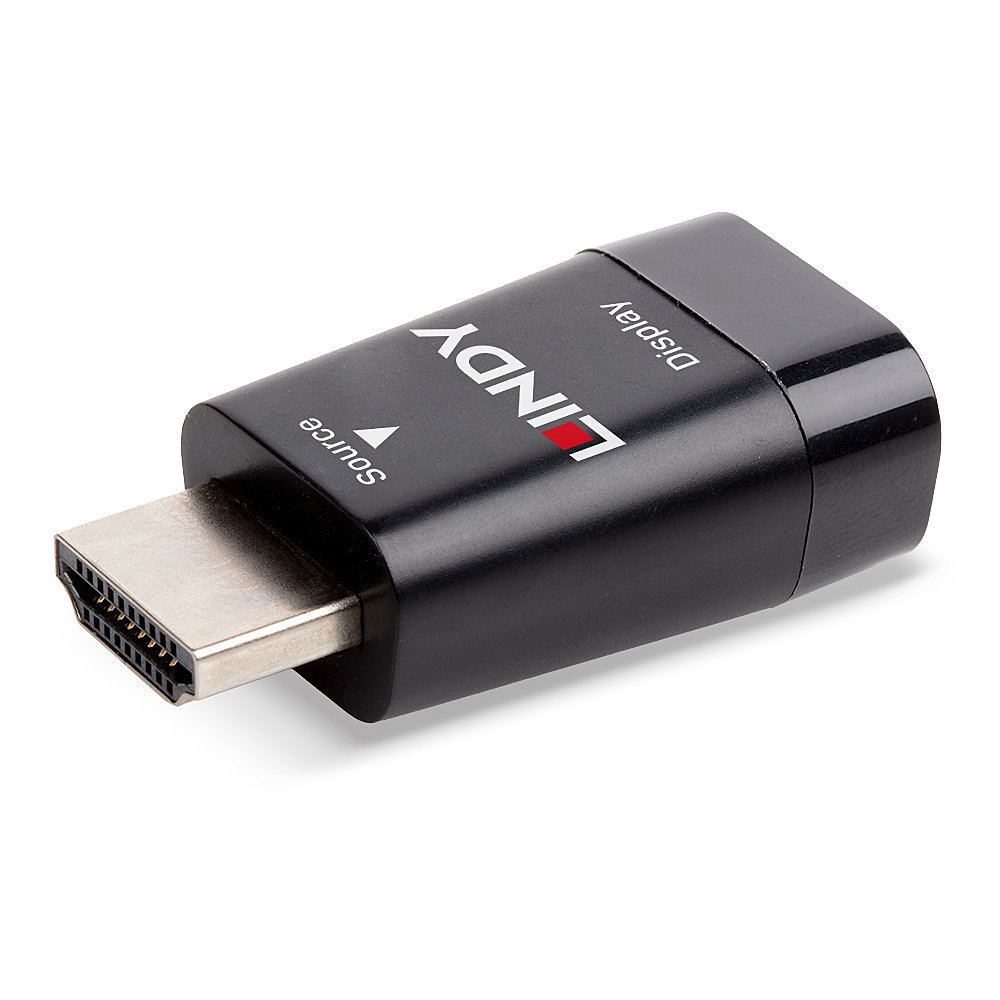

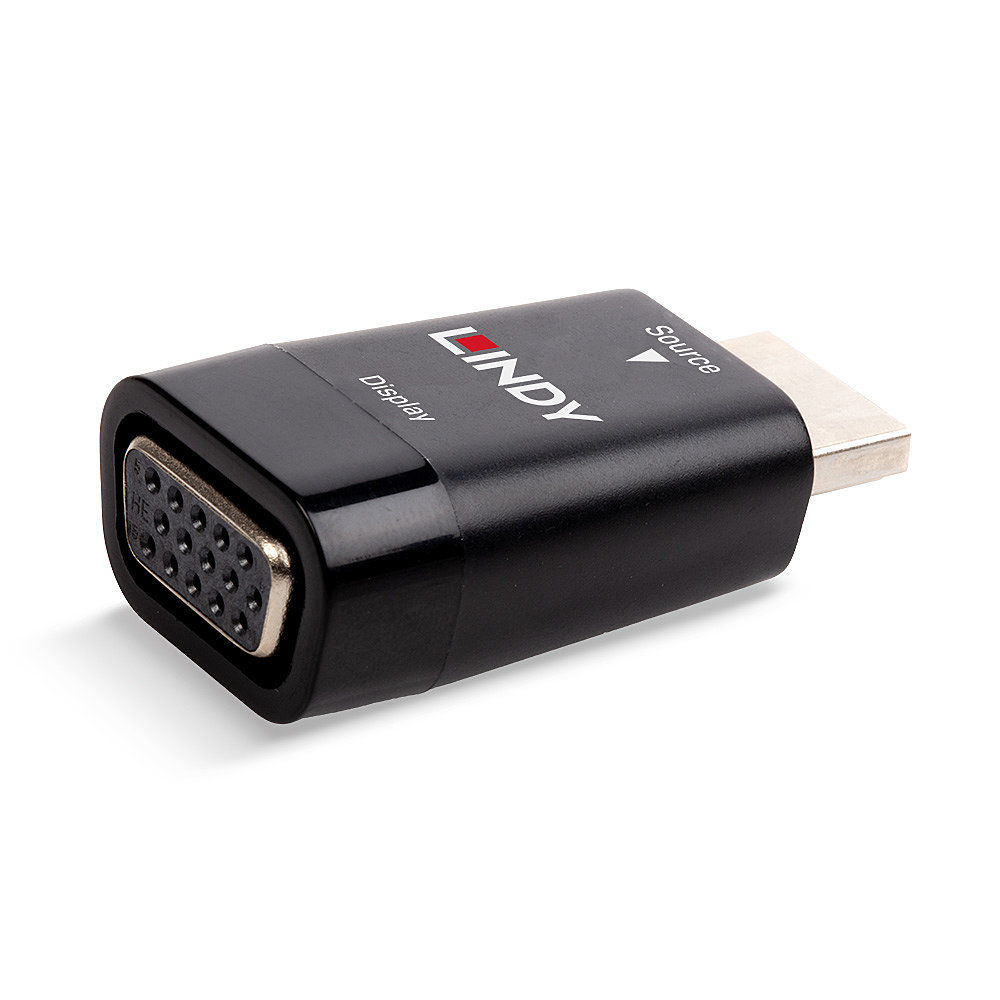

HDMI 1.3 TO VGA CONVERTER

Introduction

The Lindy HDMI to VGA converter converts signals from a HDMI equipped source into a VGA signal. It supports resolutions up to 1920x1200@60Hz for VGA displays.This allows the connection of HDMI capable devices, such as PC's, notebooks and ultrabooks, to an older VGA display or projector.

The converter can also be used to add another display to extend the available desktop workspace. It is also ideally suited for travelling due to its compact, lightweight form factor and convenient plug and play installation.

Specifications

Ports & interfaces
Connector 2	VGA
Connector 1	HDMI Type A (Standard)
Cable length	0 m
Connector 2 gender	Female
Connector 1 gender	Male
Performance
Chipset	Algoltek AG6200A
Maximum resolution	1920 x 1200 pixels
Product colour	Black
Data transfer rate	10.2 Gbit/s
Certification	CE, UKCA, FCC, RoHS, REACH
Operational conditions
Storage temperature (T-T)	-20 - 80 °C
Operating temperature (T-T)	-20 - 80 °C
Certificates
Certification	CE, UKCA, FCC, RoHS, REACH
Weight & dimensions
Width	22 mm
Weight	9 g
Height	13 mm
Depth	42 mm
Packaging content
Quantity per pack	1 pc(s)
Packaging data
Package width	120 mm
Package type	Polybag
Package height	20 mm
Package depth	120 mm
Package weight	14 g
Technical details
Package type	Polybag
Maximum resolution	1920 x 1200 pixels
Product colour	Black
Cable length	0 m
Design
Product colour	Black
Certification	CE, UKCA, FCC, RoHS, REACH
Cable length	0 m
Logistics data
Harmonized System (HS) code	84733080
