INTELLINET/MANHATTAN 207959 INTELLINET/MANHATTAN HDMI 1080p Over Ip Extender Kit

*Image accuracy is not guaranteed
Please do not rely on the image for your purchase.

** All heavy items above 25KG will be charged shipping cost as per actual.
Please contact us for a shipping quote before placing order.

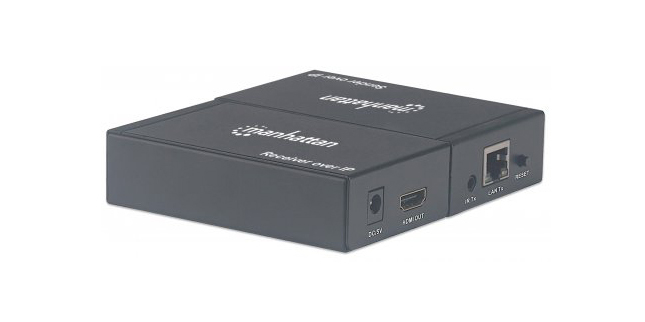

HDMI 1080p Over Ip Extender Kit

Introduction

Easily extend a High-Definition (HD) signal over an IP network with a single Ethernet cable.The Manhattan 1080p HDMI over IP Extender Kit is the ideal solution for connectingvirtually any digital HDMI source (PlayStation, Xbox, Blu-ray player, satellite receiver,digital recorder, etc.) to an HD display or projector up to 120 m (396 ft.) away using an IPnetwork and a single Ethernet cable. This powered HDMI over IP Extender Kit providesreliable 1080p resolution video and multichannel audio transmission over longer distancesthan HDMI cables alone. Plus, the transmitter and receiver modules have additional 3.5mm ports for Infrared (IR) to allow for the control of the source from the display's location.

What's Included

  • 1080p HDMI over IP Extender Kit (receiver & transmitter modules)
  • Power adapter (two units)
  • IR blaster and receiver (one unit)
  • Wall mounting hardware (two units each)
  • Quick Instruction Guide

Features

  • Extends an HDMI signal from an HDMI source to a High-Definition (HD) monitor orprojector up to 120 m (396 ft.) using an unmanaged network switch and an Ethernetcable
  • Works in conjunction with existing network infrastructures via TCP/IP

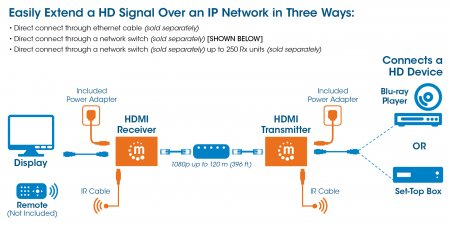

  • Supports three connection configurations: direct connect from transmitter (Tx) unit toreceiver (Rx) unit; Tx unit to network switch to Rx unit; Tx unit to network switch tomany Rx units
  • Can connect up to 250 displays to network with additional Rx units
  • Supports uncompressed 1080p resolution at 120 m (396 ft.) and 10.2 Gbps datathroughput
  • Supports video amplifier bandwidth up to 165 MHz and 1.65 Gbps per channel (4.95Gbps total) for 1080p displays
  • Supports lossless LPCM 8 channel uncompressed audio formatting and 5.1 surroundsound
  • Offers IR Tx and Rx cables that allow for convenient remote control of HD signalsource
  • HDCP compliant
  • Fully HDCP compliant to protect high-definition content transmission and ensure quality reception
  • Plug and play
  • Plug and play — requires no installation or configuration
  • A flexible Audio/Video solution for conference rooms (when sharing ideas and data),digital signage (extending the distances between displays) and other applications
  • Compatible with PlayStation and Xbox game systems, Blu-ray players, set-top boxes,satellite receivers and more
  • Gold-plated contacts
  • Gold-plated contacts for corrosion-free connections

Specifications

Standards and Certifications

  • HDCP 1.2
  • TCP/IP
  • DVI 1.0
  • CTS 1.2
  • CE
  • FCC
  • RoHS2

General

  • Cat6 cable: 1080p at 120 m (396 ft.)
  • Cat6 cable: 720p at 160 m (528 ft.)
  • Cat6 cable: 480p at 200 m (660 ft.)
  • Cat5e cable: 1080p at 100 m (330 ft.)
  • Cat5e cable: 720p at 140 m (462 ft.)
  • Cat5e cable: 480p at 180 m (594 ft.)
  • Power: 5 VDC / 2 A (cable: 1.4 m [4.5 ft.])
  • LED indicator

Video Resolutions

  • Standard-definition TV, High-Definition TV
  • SDTV/HDTV/UHDTV: 480i/576i/480p/576p/720p/1080i/1080p

Physical

  • Dimensions: 100 x 59 x 25 mm (3.9 x 2.3 x 1 in.)
  • Weight: 0.66 kg (1.45 lbs.)
  • Housing: metal
